Core Build

Alliance Winding Equipment, Inc. offers stator and rotor core build systems that can be operator loaded or integrated with automatic stack selection and transfer automation to minimize operator intervention.

The design, service and support that you receive from the Alliance team will give you the confidence to develop new products for continued growth.

Cleating

Alliance Winding Equipment, Inc. cleating machines roll bands of steel into dovetail slots on the O.D. of the stator and are designed for reliability and repeatability. These machines run for optimized utilization and offer quick change tooling for minimal production interruption.

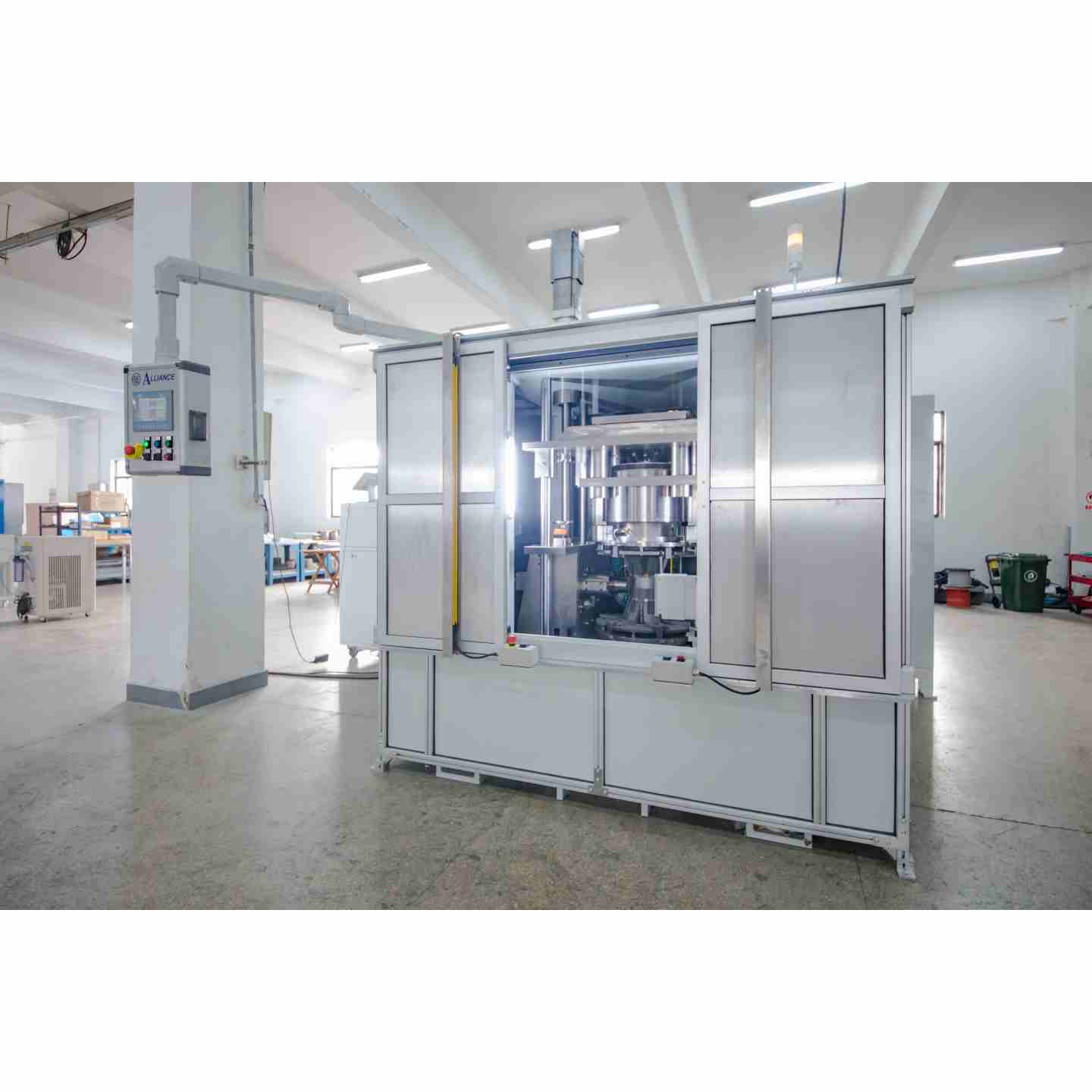

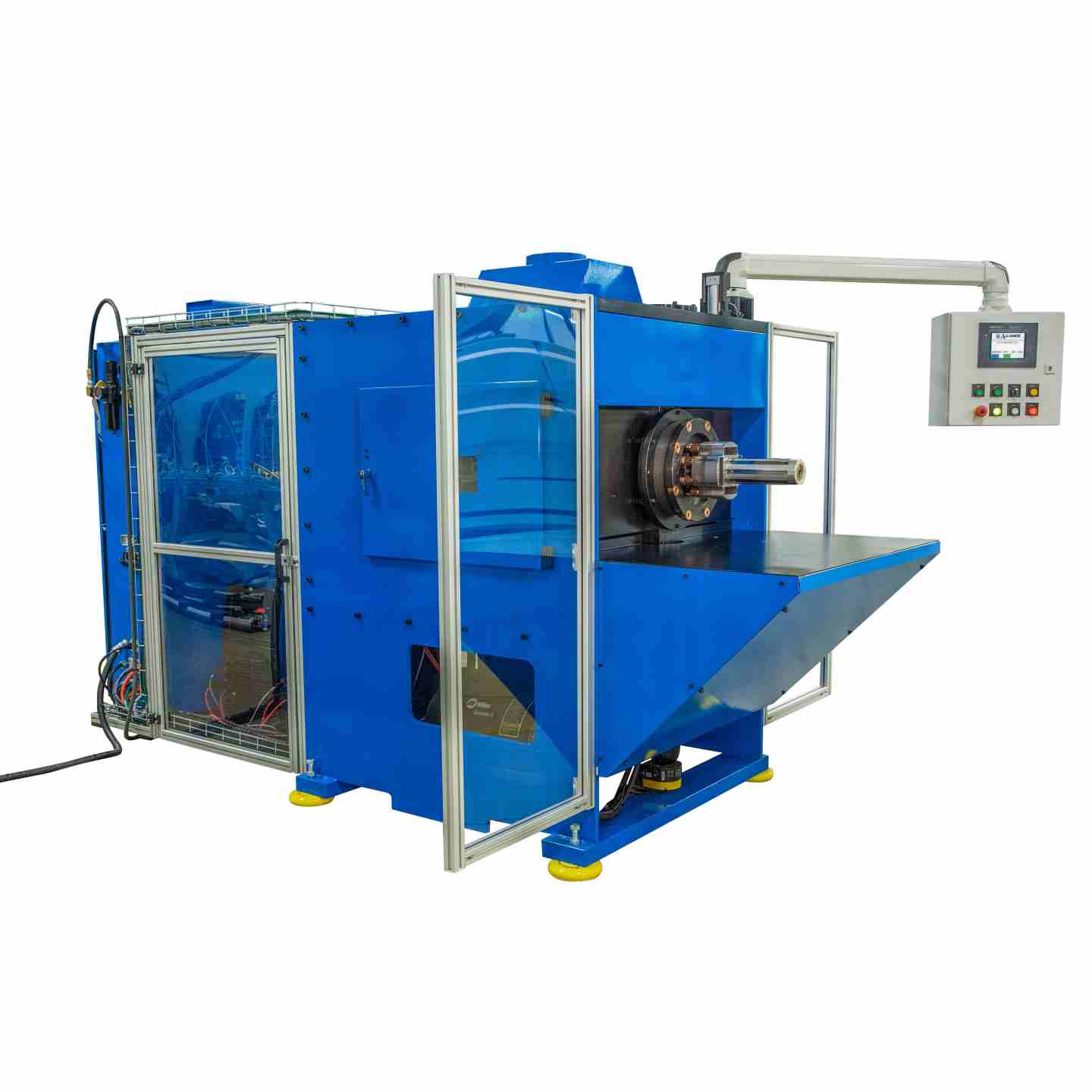

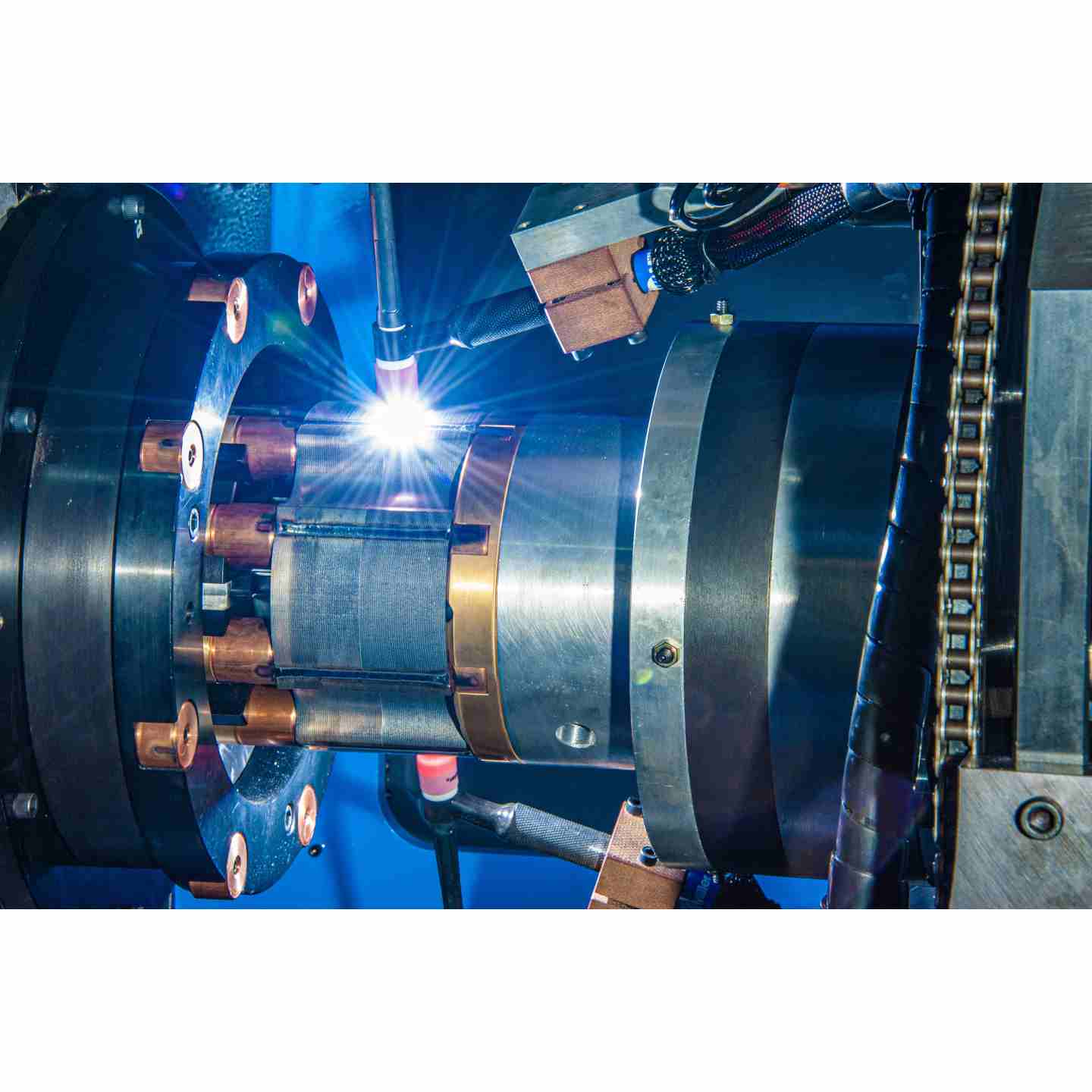

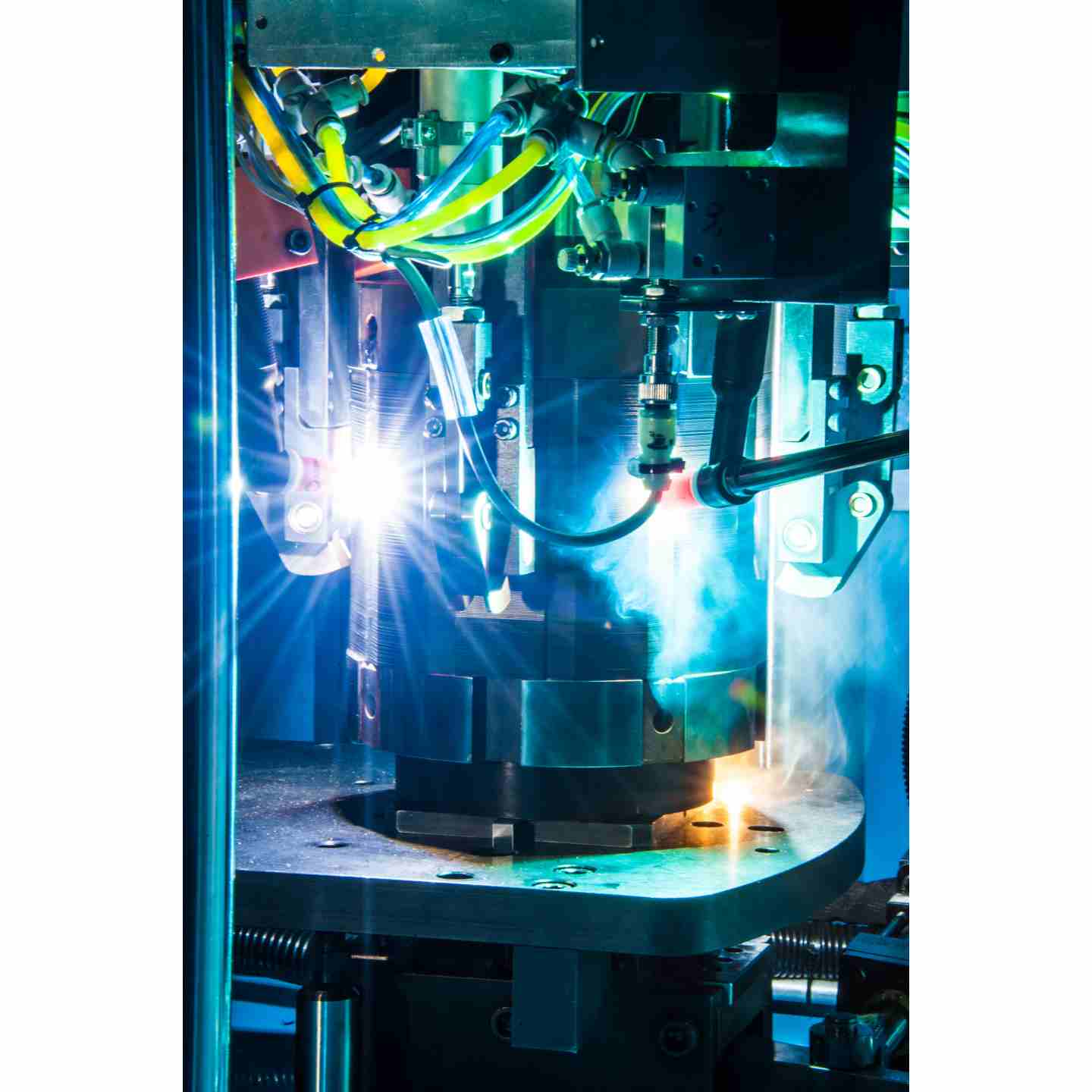

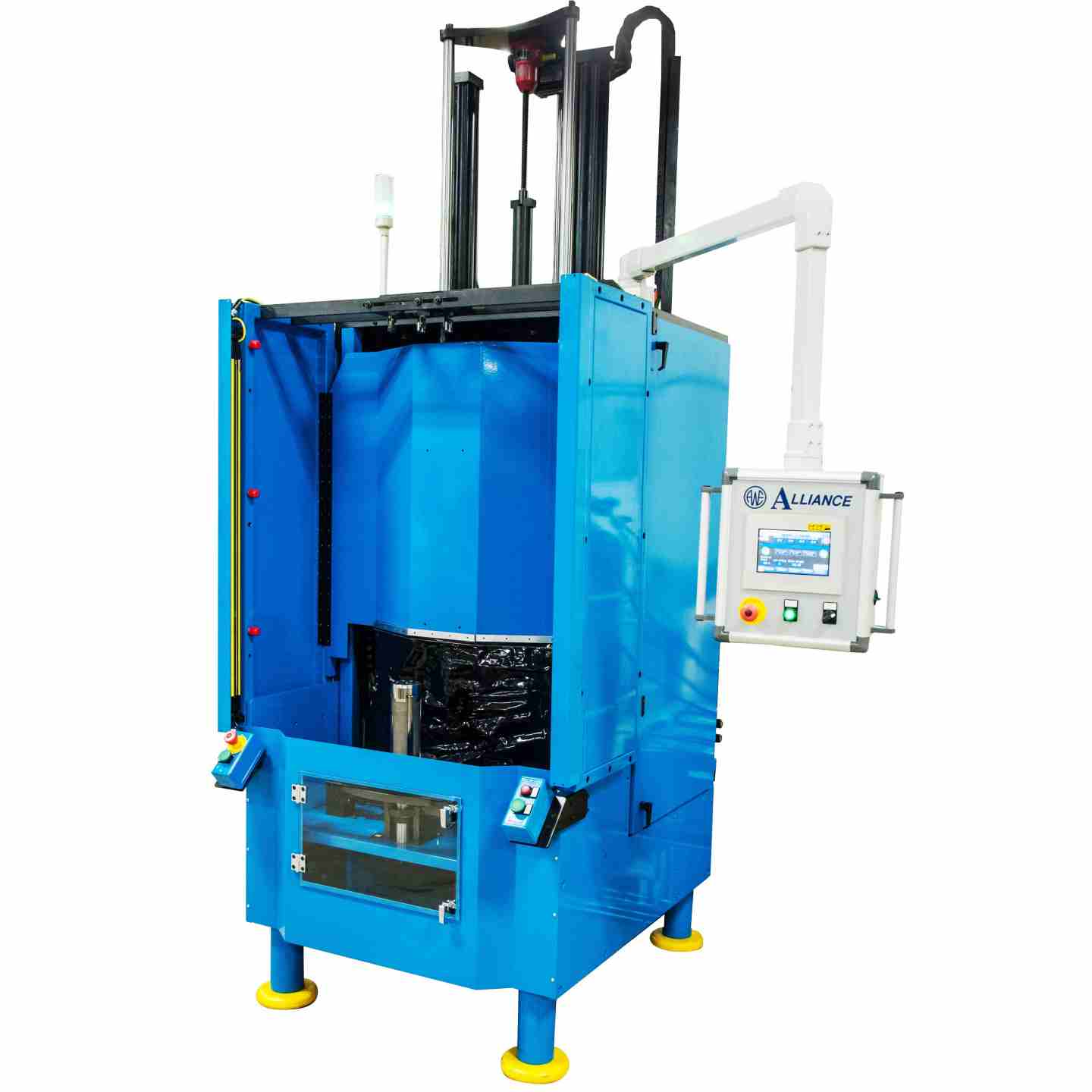

Welding

Alliance Winding Equipment, Inc. offers different forms of weld systems to produce in the low hundreds or in the millions of stators and rotors per year depending on the level of automation to meet the requirements of the manufacturing line.
  • TIG Welding
  • MIG Welding
  • Plasma Welding
  • Laser Welding

Stator Roll Up and Individual Segmented Pole Stator Assembly

Alliance Winding Equipment, Inc. offers advanced stator assembly machines designed specific to the application. These machines provide alignment and perpendicularity to any level of automation.
